Template class for a value within a certain min/max range. More...

#include <RangedValue.h>

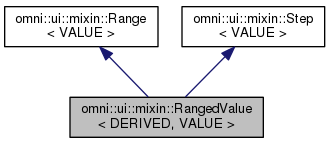

Inheritance diagram for omni::ui::mixin::RangedValue< DERIVED, VALUE >:

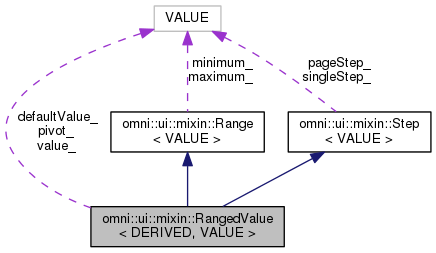

Collaboration diagram for omni::ui::mixin::RangedValue< DERIVED, VALUE >:

Public Types
typedef Range< VALUE >	range_type

typedef Step< VALUE >	step_type

typedef VALUE	value_type

Public Types inherited from omni::ui::mixin::Range< VALUE >
typedef VALUE	value_type

Public Types inherited from omni::ui::mixin::Step< VALUE >
typedef VALUE	value_type

Public Member Functions
	RangedValue ()
	Default constructor. More...

	RangedValue (value_type _value, value_type _minimum, value_type _maximum, value_type _singleStep=1.0, value_type _pageStep=10.0)
	Constructor from user defined value and range. More...

qreal	ratio () const
	Returns ratio of current value. More...

value_type	value () const
	Return value. More...

value_type	defaultValue () const
	Return default value. More...

value_type	pivot () const
	Return pivot value. More...

void	increase ()
	Increate value by single step value. More...

void	decrease ()
	Decrease value by single step value. More...

void	setValue (value_type _value)
	Set new value and emit value changed event. More...

void	reset ()
	Reset value to default value. More...

void	setDefaultValue (value_type _value)
	Set new default value. More...

void	setPivot (value_type _pivot)
	Set pivot value (0.0 by default) More...

Public Member Functions inherited from omni::ui::mixin::Range< VALUE >
	Range (value_type _minimum=0.0, value_type _maximum=100.0)

qreal	ratio (value_type _v) const
	Return ratio of value v. More...

value_type	range () const
	Return range (difference between maximum and minimum) More...

value_type	minimum () const
	Return minimum value. More...

value_type	maximum () const
	Return maximum value. More...

void	setMinimum (value_type _minimum)
	Set new minimum value and value and emit rangeChanged event. More...

void	disableMinimum ()
	Disable minimum by setting the value to infinite. More...

void	setMaximum (value_type _maximum)
	Set new maximum value and value and emit rangeChanged event. More...

void	disableMaximum ()
	Disable maximum by setting maximum to infinite value. More...

void	setRange (value_type _minimum, value_type _maximum)
	Set range and validate. More...

void	disableRange ()
	Disable range by setting minimum and maximum to infinite value. More...

bool	minimumUsed () const

bool	maximumUsed () const

Public Member Functions inherited from omni::ui::mixin::Step< VALUE >
	Step (value_type _singleStep=1.0, value_type _pageStep=10.0, bool _snap=false)
	Construct with a single step, page step value. More...

qreal	snapped (value_type _v) const
	Return snapped value. More...

bool	snap () const
	Snap value (align to single step value) More...

void	setSnap (bool _snap)
	Set boolean if value is to be snapped. More...

value_type	singleStep () const
	Return value for single step. More...

value_type	pageStep () const
	Return value for page step. More...

void	setSingleStep (value_type _singleStep)
	Set new single step value. More...

void	setPageStep (value_type _pageStep)
	Set new value for page step. More...

Protected Member Functions
template<typename WIDGET >
void	apply (WIDGET *_widget) const
	Apply ranged value to widget. More...

template<typename F >
void	for_each_step (F f)
	Functor to apply for each step. More...

void	validate ()
	Validate minimum, maximum and value. More...

virtual void	valueChangedEvent ()
	Value changed event which is emitted on changed value. More...

Protected Member Functions inherited from omni::ui::mixin::Range< VALUE >
template<typename WIDGET >
void	apply (WIDGET *_widget) const
	Apply range to widget. More...

template<typename WIDGET , typename V >
void	apply (WIDGET *_widget, V _value) const
	Applay range to widget and set value. More...

virtual void	rangeChangedEvent ()
	Handler to emit rangeChanged signal in derived widgets. More...

Protected Member Functions inherited from omni::ui::mixin::Step< VALUE >
template<typename MIN , typename MAX , typename F >
void	for_each_step (MIN _min, MAX _max, F f)
	Functor to be applied for each step between min and maximum. More...

Private Attributes
value_type	value_ = 0.0

value_type	defaultValue_ = 0.0

value_type	pivot_ = 0.0

Detailed Description

template<typename DERIVED, typename VALUE>
struct omni::ui::mixin::RangedValue< DERIVED, VALUE >

Template class for a value within a certain min/max range.

Template Parameters

DERIVED	name of derived class
VALUE	value type (e.g. int or double)

Member Typedef Documentation

template<typename DERIVED, typename VALUE>

typedef Range<VALUE> omni::ui::mixin::RangedValue< DERIVED, VALUE >::range_type

template<typename DERIVED, typename VALUE>

typedef Step<VALUE> omni::ui::mixin::RangedValue< DERIVED, VALUE >::step_type

template<typename DERIVED, typename VALUE>

typedef VALUE omni::ui::mixin::RangedValue< DERIVED, VALUE >::value_type

Constructor & Destructor Documentation

template<typename DERIVED, typename VALUE>

omni::ui::mixin::RangedValue< DERIVED, VALUE >::RangedValue ( )

inline

Default constructor.

42 {}

template<typename DERIVED, typename VALUE>

omni::ui::mixin::RangedValue< DERIVED, VALUE >::RangedValue	(	value_type	_value,
		value_type	_minimum,
		value_type	_maximum,
		value_type	_singleStep = `1.0`,
		value_type	_pageStep = `10.0`
	)

inline

Constructor from user defined value and range.

                                        :
           range_type(_minimum, _maximum),
           step_type(_singleStep, _pageStep),
           value_(_value),
           defaultValue_(_value),
           pivot_(_minimum)
         {}

Member Function Documentation

template<typename DERIVED, typename VALUE>

template<typename WIDGET >

void omni::ui::mixin::RangedValue< DERIVED, VALUE >::apply ( WIDGET * _widget ) const

inlineprotected

Apply ranged value to widget.

           {
             range_type::apply(_widget, value_);

             _widget->setSingleStep(step_type::singleStep());
           }

template<typename DERIVED, typename VALUE>

void omni::ui::mixin::RangedValue< DERIVED, VALUE >::decrease ( )

inline

Decrease value by single step value.

         {
           value_type _oldValue = value_;

           value_ -= step_type::singleStep();
           validate();

           if (value_ != _oldValue) valueChangedEvent();
         }

template<typename DERIVED, typename VALUE>

value_type omni::ui::mixin::RangedValue< DERIVED, VALUE >::defaultValue ( ) const

inline

Return default value.

         {
           return step_type::snapped(defaultValue_);
         }

template<typename DERIVED, typename VALUE>

template<typename F >

void omni::ui::mixin::RangedValue< DERIVED, VALUE >::for_each_step ( F f )

inlineprotected

Functor to apply for each step.

           {
             step_type::for_each_step(
               range_type::minimum(), pivot_, f);
             step_type::for_each_step(pivot_,
                                      range_type::maximum(),
                                      f);
           }

template<typename DERIVED, typename VALUE>

void omni::ui::mixin::RangedValue< DERIVED, VALUE >::increase ( )

inline

Increate value by single step value.

         {
           value_type _oldValue = value_;

           value_ += step_type::singleStep();
           validate();

           if (value_ != _oldValue) valueChangedEvent();
         }

template<typename DERIVED, typename VALUE>

value_type omni::ui::mixin::RangedValue< DERIVED, VALUE >::pivot ( ) const

inline

Return pivot value.

         {
           return pivot_;
         }

template<typename DERIVED, typename VALUE>

qreal omni::ui::mixin::RangedValue< DERIVED, VALUE >::ratio ( ) const

inline

Returns ratio of current value.

         {
           return range_type::ratio(value());
         }

template<typename DERIVED, typename VALUE>

void omni::ui::mixin::RangedValue< DERIVED, VALUE >::reset ( )

inline

Reset value to default value.

         {
           setValue(defaultValue_);
         }

template<typename DERIVED, typename VALUE>

void omni::ui::mixin::RangedValue< DERIVED, VALUE >::setDefaultValue ( value_type _value )

inline

Set new default value.

         {
           defaultValue_ = _value;
         }

template<typename DERIVED, typename VALUE>

void omni::ui::mixin::RangedValue< DERIVED, VALUE >::setPivot ( value_type _pivot )

inline

Set pivot value (0.0 by default)

         {
           pivot_ = _pivot;
         }

template<typename DERIVED, typename VALUE>

void omni::ui::mixin::RangedValue< DERIVED, VALUE >::setValue ( value_type _value )

inline

Set new value and emit value changed event.

         {
           value_type _oldValue = value_;

           value_ = _value;
           validate();

           if (value_ != _oldValue) valueChangedEvent();
         }

template<typename DERIVED, typename VALUE>

void omni::ui::mixin::RangedValue< DERIVED, VALUE >::validate ( )

inlineprotectedvirtual

Validate minimum, maximum and value.

Reimplemented from omni::ui::mixin::Range< VALUE >.

           {
             range_type::validate();

             if (value_ <
                 range_type::minimum()) value_ = range_type::minimum();

             if (value_ >
                 range_type::maximum()) value_ = range_type::maximum();

             if (pivot_ <
                 range_type::minimum()) pivot_ = range_type::minimum();

             if (pivot_ >
                 range_type::maximum()) pivot_ = range_type::maximum();
           }

template<typename DERIVED, typename VALUE>

value_type omni::ui::mixin::RangedValue< DERIVED, VALUE >::value ( ) const

inline

Return value.

         {
           return step_type::snap() ? step_type::snapped(value_) : value_;
         }

template<typename DERIVED, typename VALUE>

virtual void omni::ui::mixin::RangedValue< DERIVED, VALUE >::valueChangedEvent ( )

inlineprotectedvirtual

Value changed event which is emitted on changed value.

Reimplemented in omni::ui::RangedFloat, omni::ui::Dial, and omni::ui::RangedInt.

174 {}

Field Documentation

template<typename DERIVED, typename VALUE>

value_type omni::ui::mixin::RangedValue< DERIVED, VALUE >::defaultValue_ = 0.0

private

template<typename DERIVED, typename VALUE>

value_type omni::ui::mixin::RangedValue< DERIVED, VALUE >::pivot_ = 0.0

private

template<typename DERIVED, typename VALUE>

value_type omni::ui::mixin::RangedValue< DERIVED, VALUE >::value_ = 0.0

private

The documentation for this struct was generated from the following file:

include/omni/ui/mixin/RangedValue.h
