omni::ui::TestInputPreview Class Reference

An input preview for display a test image input. More...

#include <TestInputPreview.h>

Inheritance diagram for omni::ui::TestInputPreview:

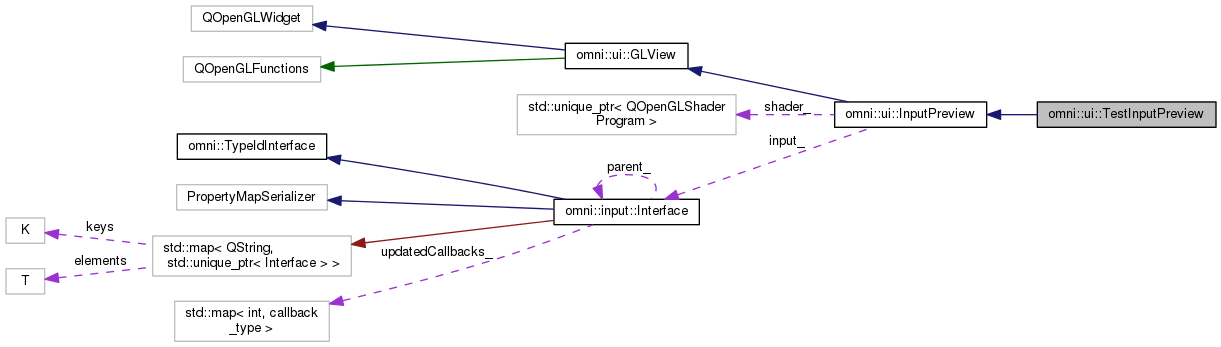

Collaboration diagram for omni::ui::TestInputPreview:

Public Member Functions
	TestInputPreview (QWidget *=nullptr)
	TestInputPreview (input::TestImage *, QWidget *=nullptr)
	~TestInputPreview ()
Public Member Functions inherited from omni::ui::InputPreview
	InputPreview (QWidget *=nullptr)
	InputPreview (input::Interface *_input, QWidget *=nullptr)
	~InputPreview ()
float	border () const
	Return relative border value. More...
input::Interface *	input ()
	Return pointer to input. More...
input::Interface const *	input () const
	Return pointer to input (const version) More...
void	setInput (input::Interface *)
	Set pointer to input. More...
QPointF	screenPos (QPointF const &_pos) const
	Transforms mouse position on widget to normalized position on input Position in range (0.0,0.0) and (1.0,1.0) More...
Public Member Functions inherited from omni::ui::GLView
	GLView (QWidget *_parent=nullptr)
virtual	~GLView ()
float	aspect () const
	Return aspect ratio of widget. More...
QPointF	mousePosition () const
	Return mouse position. More...
bool	initialized () const
	Return boolean value if widget has been initialized. More...
float	updateFrequency () const
	Return update frequency. More...
void	setUpdateFrequency (float _updateFrequency)
	Return update frequency. More...

Protected Member Functions
void	mouseMoveEvent (QMouseEvent *event)
void	mousePressEvent (QMouseEvent *event)
	Mouse press event sets mouse position. More...
void	mouseReleaseEvent (QMouseEvent *event)
Protected Member Functions inherited from omni::ui::InputPreview
void	paintGL ()
	Paint GL routine. More...
void	showEvent (QShowEvent *)
Protected Member Functions inherited from omni::ui::GLView
void	initializeGL ()
	Initialize OpenGL contents. More...
virtual void	resizeGL (int _w, int _h)
	Resize GL and viewport. More...
void	timerEvent (QTimerEvent *)
void	paintGLReady ()

Private Member Functions
void	setRulerPos (QPointF const &)
	Set ruler position of input from widget coordinates. More...

Additional Inherited Members
Public Slots inherited from omni::ui::InputPreview
void	setBorder (float)
	Set relative border distance. More...
Public Slots inherited from omni::ui::GLView
void	triggerUpdate ()
void	paintGLDone ()
Signals inherited from omni::ui::InputPreview
void	inputChanged ()
Protected Attributes inherited from omni::ui::GLView
bool	updateTriggered_ = false
QPointF	mousePosition_
	Mouse position stored. More...

Detailed Description

An input preview for display a test image input.

Constructor & Destructor Documentation

omni::ui::TestInputPreview::TestInputPreview

(

QWidget *

_widget = nullptr

)

                                                           :
            InputPreview(_widget) {}

omni::ui::TestInputPreview::TestInputPreview	(	input::TestImage *	_input,
		QWidget *	_widget = nullptr
	)

                                                      :
            InputPreview(_input, _widget) {}

omni::ui::TestInputPreview::~TestInputPreview

(

)

{}

Member Function Documentation

void omni::ui::TestInputPreview::mouseMoveEvent ( QMouseEvent *  event )

protected

        {
            if (!input()) return;

            if (event->buttons() & Qt::LeftButton)
            {
                setRulerPos(event->pos());
            }
        }

void omni::ui::TestInputPreview::mousePressEvent ( QMouseEvent *  event )

protectedvirtual

Mouse press event sets mouse position.

Reimplemented from omni::ui::GLView.

        {
            GLView::mousePressEvent(event);
            if (!input()) return;
            setRulerPos(event->pos());
        }

void omni::ui::TestInputPreview::mouseReleaseEvent ( QMouseEvent *  event )

protected

        {
            if (!input()) return;

            if (event->buttons() & Qt::LeftButton)
            {
                setRulerPos(event->pos());
            }
        }

void omni::ui::TestInputPreview::setRulerPos ( QPointF const &  _eventPos )

private

Set ruler position of input from widget coordinates.

        {
            if (!input()) return;

            QPointF _pos = screenPos(_eventPos);
            static_cast<input::TestImage*>(input())->setRulerPos(_pos);
            input()->update();
            triggerUpdate();
            emit inputChanged();
        }

---

The documentation for this class was generated from the following files:

• include/omni/ui/TestInputPreview.h
• src/lib/ui/TestInputPreview.cpp
