omni::ui::ColorCorrection Class Reference

Dockwidget for editing color correction of a projector. More...

#include <ColorCorrection.h>

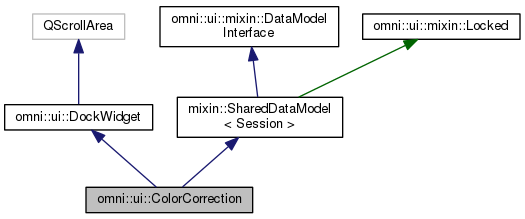

Inheritance diagram for omni::ui::ColorCorrection:

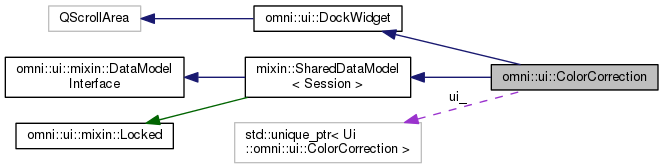

Collaboration diagram for omni::ui::ColorCorrection:

Public Types
typedef omni::proj::Channel	Channel
Public Types inherited from omni::ui::mixin::DataModel< DATAMODEL, SHARED >
typedef DATAMODEL	data_model_type
	Data type. More...
typedef DataModel < data_model_type, SHARED >	type
	This type. More...
typedef detail::PointerType < data_model_type, SHARED >	pointer_type_handler
	Pointer type handler. More...
typedef pointer_type_handler::type	pointer_type
	Derived pointer type. More...

Public Slots
void	setAllChannels ()
	Select color correction for all channels. More...
void	setRedChannel ()
	Select color correction for red channel. More...
void	setGreenChannel ()
	Select color correction for green channel. More...
void	setBlueChannel ()
	Select color correction for blue channel. More...
void	setChannel (Channel _channel)
	Select color correction for custom channel. More...
void	setUsed (bool)
	Select whether color correction is used. More...

Signals
void	dataModelChanged ()

Public Member Functions
	ColorCorrection (QWidget *_parent=nullptr)
	~ColorCorrection ()
Public Member Functions inherited from omni::ui::DockWidget
	DockWidget (QWidget *=nullptr)
template<typename UI >
	DockWidget (UI &_ui, QWidget *_parent=nullptr)
virtual	~DockWidget ()
Public Member Functions inherited from omni::ui::mixin::DataModel< DATAMODEL, SHARED >
	DataModel ()
void	setDataModel (pointer_type _dataModel)
	Set new data model. More...
pointer_type	dataModel ()
	Return pointer to data model. More...
const pointer_type	dataModel () const
	Return pointer to data model (const version) More...
virtual void	updateFrontend ()
	Push data to frontend widgets and all child widgets. More...
virtual void	updateDataModel ()
	Update the data model interface. More...

Private Member Functions
void	dataToFrontend ()
	Update sliders from current color correction. More...
bool	frontendToData ()
	Assign slider values to current color correction. More...

Private Attributes
std::unique_ptr < Ui::ColorCorrection >	ui_

Additional Inherited Members
Protected Member Functions inherited from omni::ui::DockWidget
template<typename UI >
void	setup (UI &_ui)
	Setup ui form UI parameter is smart pointer (e.g. unique_ptr) to UI form. More...
Protected Member Functions inherited from omni::ui::mixin::Locked
template<typename F >
void	locked (F f)
	Lock widget and execute given functor. More...
bool	isLocked () const
	Return true if widget is locked. More...

Detailed Description

Dockwidget for editing color correction of a projector.

Member Typedef Documentation

typedef omni::proj::Channel omni::ui::ColorCorrection::Channel

Constructor & Destructor Documentation

omni::ui::ColorCorrection::ColorCorrection

(

QWidget *

_parent = nullptr

)

                                                     :
      DockWidget(_parent),
      ui_(new Ui::ColorCorrection)
    {
      this->setup(ui_);

      connect(ui_->params, SIGNAL(dataModelChanged()), ui_->graph,
              SLOT(update()));
      connect(ui_->params, SIGNAL(dataModelChanged()), this,
              SIGNAL(dataModelChanged()));

      connect(ui_->btnAll, SIGNAL(clicked()), this, SLOT(setAllChannels()));
      connect(ui_->btnRed, SIGNAL(clicked()), this, SLOT(setRedChannel()));
      connect(ui_->btnGreen, SIGNAL(clicked()), this, SLOT(setGreenChannel()));
      connect(ui_->btnBlue, SIGNAL(clicked()), this, SLOT(setBlueChannel()));

      connect(ui_->chkIsUsed, SIGNAL(clicked(bool)), this, SLOT(setUsed(bool)));
    }

omni::ui::ColorCorrection::~ColorCorrection

(

)

{}

Member Function Documentation

void omni::ui::ColorCorrection::dataModelChanged ( )

signal

void omni::ui::ColorCorrection::dataToFrontend ( )

privatevirtual

Update sliders from current color correction.

Implements omni::ui::mixin::DataModel< DATAMODEL, SHARED >.

                                         {
      auto _tuning = dataModel()->tunings().current();

      setAllChannels();

      if (!_tuning) return;

      setUsed(_tuning->colorCorrection().isUsed());
    }

bool omni::ui::ColorCorrection::frontendToData ( )

privatevirtual

Assign slider values to current color correction.

Implements omni::ui::mixin::DataModel< DATAMODEL, SHARED >.

                                         {
      return false;
    }

void omni::ui::ColorCorrection::setAllChannels ( )

slot

Select color correction for all channels.

                                         {
      setChannel(Channel::ALL);
    }

void omni::ui::ColorCorrection::setBlueChannel ( )

slot

Select color correction for blue channel.

                                         {
      setChannel(Channel::BLUE);
    }

void omni::ui::ColorCorrection::setChannel ( Channel  _channel )

slot

Select color correction for custom channel.

                                                         {
      if (!dataModel()) return;

      auto _tuning = dataModel()->tunings().current();

      if (!_tuning) return;

      this->locked([&] {
        ui_->btnAll->setChecked(_channel == Channel::ALL);
        ui_->btnRed->setChecked(_channel == Channel::RED);
        ui_->btnGreen->setChecked(_channel == Channel::GREEN);
        ui_->btnBlue->setChecked(_channel == Channel::BLUE);

        auto *_colorCorrection = &_tuning->colorCorrection();
        ui_->graph->setChannel(_channel);
        ui_->graph->setDataModel(_colorCorrection);
        ui_->params->setChannel(_channel);
        ui_->params->setDataModel(_colorCorrection->correction(_channel));
      });
    }

void omni::ui::ColorCorrection::setGreenChannel ( )

slot

Select color correction for green channel.

                                          {
      setChannel(Channel::GREEN);
    }

void omni::ui::ColorCorrection::setRedChannel ( )

slot

Select color correction for red channel.

                                        {
      setChannel(Channel::RED);
    }

void omni::ui::ColorCorrection::setUsed ( bool  _isUsed )

slot

Select whether color correction is used.

                                              {
      auto _tuning = dataModel()->tunings().current();

      if (!_tuning) return;

      this->locked([&] {
        auto& _colorCorrection = _tuning->colorCorrection();
        _colorCorrection.setUsed(_isUsed);

        ui_->chkIsUsed->setChecked(_isUsed);
        ui_->btnAll->setEnabled(_isUsed);
        ui_->btnRed->setEnabled(_isUsed);
        ui_->btnGreen->setEnabled(_isUsed);
        ui_->btnBlue->setEnabled(_isUsed);
        ui_->graph->setEnabled(_isUsed);
        ui_->params->setEnabled(_isUsed);
        emit dataModelChanged();
      });
    }

Field Documentation

std::unique_ptr<Ui::ColorCorrection> omni::ui::ColorCorrection::ui_

private

---

The documentation for this class was generated from the following files:

• src/app/ColorCorrection.h
• src/app/ColorCorrection.cpp
