omni::patch::Interface Class Reference

#include <Interface.h>

Inheritance diagram for omni::patch::Interface:

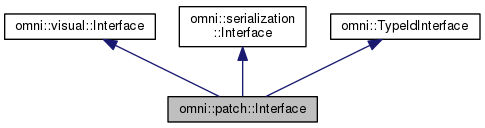

Collaboration diagram for omni::patch::Interface:

Public Member Functions
virtual	~Interface ()
std::vector< PatchHandle const * >	getHandles (QPointF const &_p) const
	Get handles under cursor (const version). Position is normalized [0,0] - [1,1]. More...
virtual std::vector < PatchHandle * >	getHandles (QPointF const &)=0
	Get handles under cursor. Position is normalized [0,0] - [1,1]. More...
virtual QWidget *	widget ()
	Return pointer to widget. More...
virtual input::Interface *	input () const =0
virtual void	assignInput (input::Interface *)=0
virtual void	removeInput ()=0
virtual bool	canHaveInput () const
Public Member Functions inherited from omni::visual::Interface
virtual void	draw () const =0
	Abstract method for visualing. More...
virtual void	update ()
	Update geometry. More...
Public Member Functions inherited from omni::serialization::Interface
virtual void	toStream (QDataStream &) const =0
	Serialize to stream. More...
virtual void	fromStream (QDataStream &)=0
	Deserialize from stream. More...
virtual bool	equal (Interface const *_that) const
	Optional virtual member method for testing equality of two. More...
Public Member Functions inherited from omni::TypeIdInterface
virtual	~TypeIdInterface ()
virtual Id	getTypeId () const =0
	Returns type id of object. More...
virtual void	registerInFactory () const =0
	Register the inherited class in factory. More...

Additional Inherited Members
Static Protected Member Functions inherited from omni::visual::Interface
static void	vertex3 (QVector3D const &)
	glVertex3f from QVector3D More...
static void	visualLine (QVector3D const &_from, QVector3D const &_to)
	Draws a line. More...
static void	color (QColor _color, float _alpha=1.0)
	glColor4f from QColor More...

Constructor & Destructor Documentation

virtual omni::patch::Interface::~Interface ( )

inlinevirtual

Reimplemented from omni::serialization::Interface.

{}

Member Function Documentation

virtual void omni::patch::Interface::assignInput ( input::Interface *  )

pure virtual

virtual bool omni::patch::Interface::canHaveInput ( ) const

inlinevirtual

{ return false; }

std::vector<PatchHandle const*> omni::patch::Interface::getHandles ( QPointF const &  _p ) const

inline

Get handles under cursor (const version). Position is normalized [0,0] - [1,1].

                                                                               {
        std::vector<PatchHandle*> _handles = const_cast<Interface*>(this)->getHandles(_p);
        std::vector<PatchHandle const*> _result;
        for (auto& _handle : _handles) {
          _result.push_back(_handle);
        }
        return _result;
      }

virtual std::vector<PatchHandle*> omni::patch::Interface::getHandles ( QPointF const &  )

pure virtual

Get handles under cursor. Position is normalized [0,0] - [1,1].

virtual input::Interface* omni::patch::Interface::input ( ) const

pure virtual

virtual void omni::patch::Interface::removeInput ( )

pure virtual

virtual QWidget* omni::patch::Interface::widget ( )

inlinevirtual

Return pointer to widget.

{ return nullptr; }

---

The documentation for this class was generated from the following file:

• include/omni/patch/Interface.h
